STEAM GENERATOR FOR WINDSHIELD DEMISTING TESTS

STEAM GENERATOR FOR WINDSHIELD DEMISTING TESTS MODEL S0104-4

The ideal steam generator for windshield demisting/defrosting tests for vehicle type approval and for device development. It simulates the steam amount generated by passengers inside the cabin.

CHARACTERISTIC

This steam generator is suitable for windshield demisting tests in conformity with Society of Automotive Engineers (SAE J902_201909) and European Standards ((EU) 2021/535).

Defroster device is equipped with the front windshield of automobile / train cars to prevent demist/defrost formation and keep the driver’s visibility. The steam generator is used for windshield demisting/defrosting tests for vehicle type approval and for device development.

The apparatus consists of a power control unit and a steam generator. The power control unit controls the steam amount to generate. For demising/defrosting tests, it is to be placed inside the cabin. It generates the steam amount equivalent to the tested number of passengers.

Two models are available, one for up to seven passengers equivalent and the other for up to eleven corresponding from small to large vehicles. By employing multiple units, it can be applied also for buses and trains.
It will be manufactured and verified according to your requested standard.

  • Applicable to large vehicles up to eleven passengers
  • Multiple unit usage also possible
  • Control box with easy- to-read touch panel
  • Japanese-English bilingual switchable display
  • Boiling of water from ordinary temperature water possible
  • Supports multiple power sources
  • Generate set amount of steam constantly by feedback control of the heater
  • Equipped with no-water heating prevention function

USE

  • Demisting/defrosting performance test for newly developed HVAC system
  • Air conditioner demisting test for large vehicles such as trains and buses
  • Cabin air conditioning demisting test for agricultural and construction machinery
  • Fogging test for onboard camera lenses
  • Demisting test for amphibious vehicles
  • Tests that require steam volume control
  • Tests that require constant steam generation

SPECIFICATIONS

Specifications (max. eleven passengers equivalent model)
Steam 70 to 770 g/h
Water tank 3.2 β„“
Heater 800 W
Cable length 10m (between steam generator and control box, standard length)
Power supply AC100 to 240 V
Weight Steam generator (empty) 9kg
Steam generator (full) 12kg
Pedestal body 4kg
Specifications subject to change without notice.
Applicable standards: windshield demisting tests
JIS D 4504-1995 Japanese Industrial Standard
ISO 3468:2014 International Organization for Standardization
(EU) 2021/535 European Standards
SAE J902_201909 Society of Automotive Engineers

DOWNLOAD

WORKING EXAMPLE

  • Placement example for a windshield demisting performance test (max. seven passengers equivalent, low tank type)

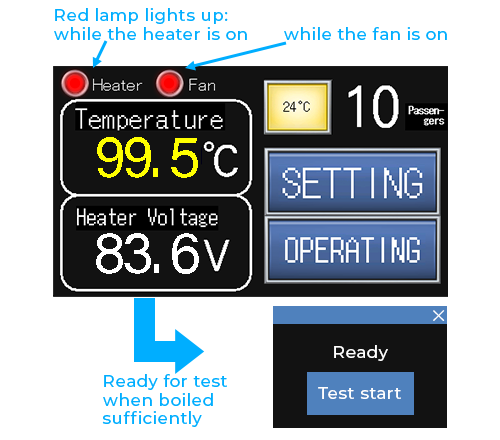

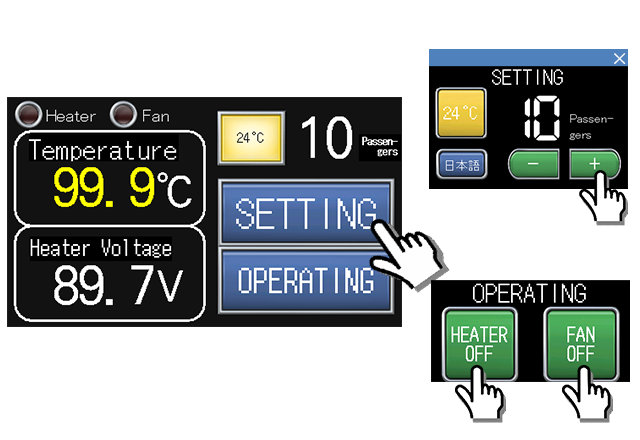

  • Touch panel operation example
